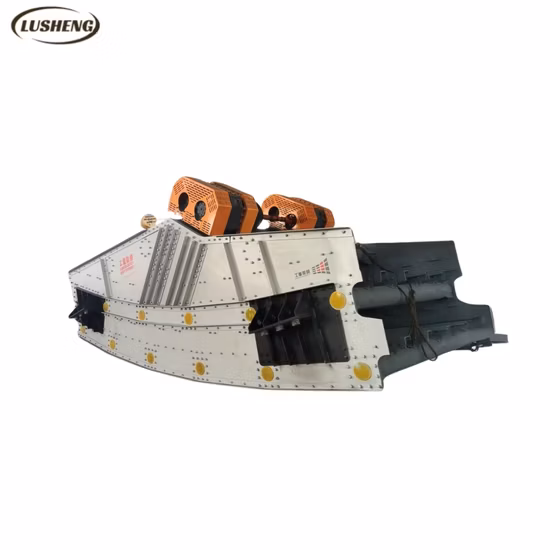

Linear Vibration Screen Separator for Sand

Basic Info.

Model NO.	1245
Shaft Number	Single
Running Track	Linear Vibrating Screen
Supporting Device	Rubber Spring
Warranty	1 Year
Customized	Customized
Condition	New
After-sales Service	Provide Long Life After Service
Installation Drawing	Provide
Bearing	China Top Brand
Motor	Vibration Motor, China Top Brand
Transport Package	Load in Container
Specification	1025, 1020, 1224, 1530, etc
Trademark	Hengxing
Origin	China
HS Code	8474100000
Production Capacity	100 Sets Per Year

Product Description

Linear Vibration Screen Separator For Sand Linear Vibrating Screen Usage and application:This series machines use excellent vibrant motor as power source, so that the materials can be thrown up on the sieve and forward to make a straight movement. It can be equipped with single or multi-screen to achieve the goal of grading, impurity- removing, testing, washing , dehydration etc.Linear Vibrating Screen Working principle:Linear vibrating screen mainly consists of the eccentric block vibrator, screen box, motor, and supportive device.Through the flexible coupling, the motor drives the eccentric block of the vibrator at high rotary speed, generating the centrifugal force, and then lead the screen box to do circular movement by the amplitude. After that, the materials in the slope screen surface will be cast continuously by the force generated from the screen box, then realize the purpose of classifying.Linear vibrating screen is driven by double vibrating motor. When the two vibrating motors are rotated synchronously and counter-rotating, the exciting force generated by the eccentric blocks cancels each other out in the direction parallel to the motor axis, and superimposes a resultant force in the direction perpendicular to the motor axis, so the motion trajectory of the screen machine for a straight line. The two motor shafts have an inclination angle relative to the screen surface. Under the combined force of the exciting force and the self-gravity of the material, the material is thrown up on the screen surface and moves forward in a straight line, so as to achieve the purpose of screening and grading the material.

Linear vibrating screen Features:
High screening efficiency, can be screened up to 200 mesh (0.074mm)
Simple and convenient for changing and cleansing mesh screen Low noise and power consumption, easy maintenance
Less blocking of mesh screen
Automatic discharge of impurities and coarse materials, continuous operation

Linear Vibrating Screen Technical specifications:

Model	Layer	Screen mesh (mesh)	Capacity (t/h)	Vibration time (rpm)	Power (kw)	Double Amplitude (mm)
DZSF520	1	2-200	0.05-5	960	2*0.25	6-7
2DZSF520	2	2-200	0.05-5	960	2*0.4	6-7
DZSF525	1	2-200	0.06-8	960	2*0.4	5-7
2DZSF525	2	2-200	0.06-8	960	2*0.4	4-6
DZSF1020	1	2-200	0.12-20	960	2*0.75	6-8
2DZSF1020	2	2-200	0.11-20	960	2*0.75	5-7
3DZSF1020	3	2-200	0.10-2	960	2*0.75	5-7
DZSF1025	1	2-200	0.1-15	960	2*0.75	5-7
2DZSF1025	2	2-200	0.08-15	960	2*0.75	5-7
DZSF1224	1	2-200	0.1-23	960	2*1.5	6-8
2DZSF1224	2	2-200	0.1-23	960	2*1.5	6-8
3DZSF1530	3	2-200	0.1-32	960	2*2.2	6-8
3DZSF1540	3	2-200	0.1-35	960	2*2.2	6-8
3DZSF1840	3	2-200	0.1-40	960	2*3	6-8
5DZSF2050	5	2-200	0.1-48	960	2*3.7	6-8

Linear vibrating screen customer site :
